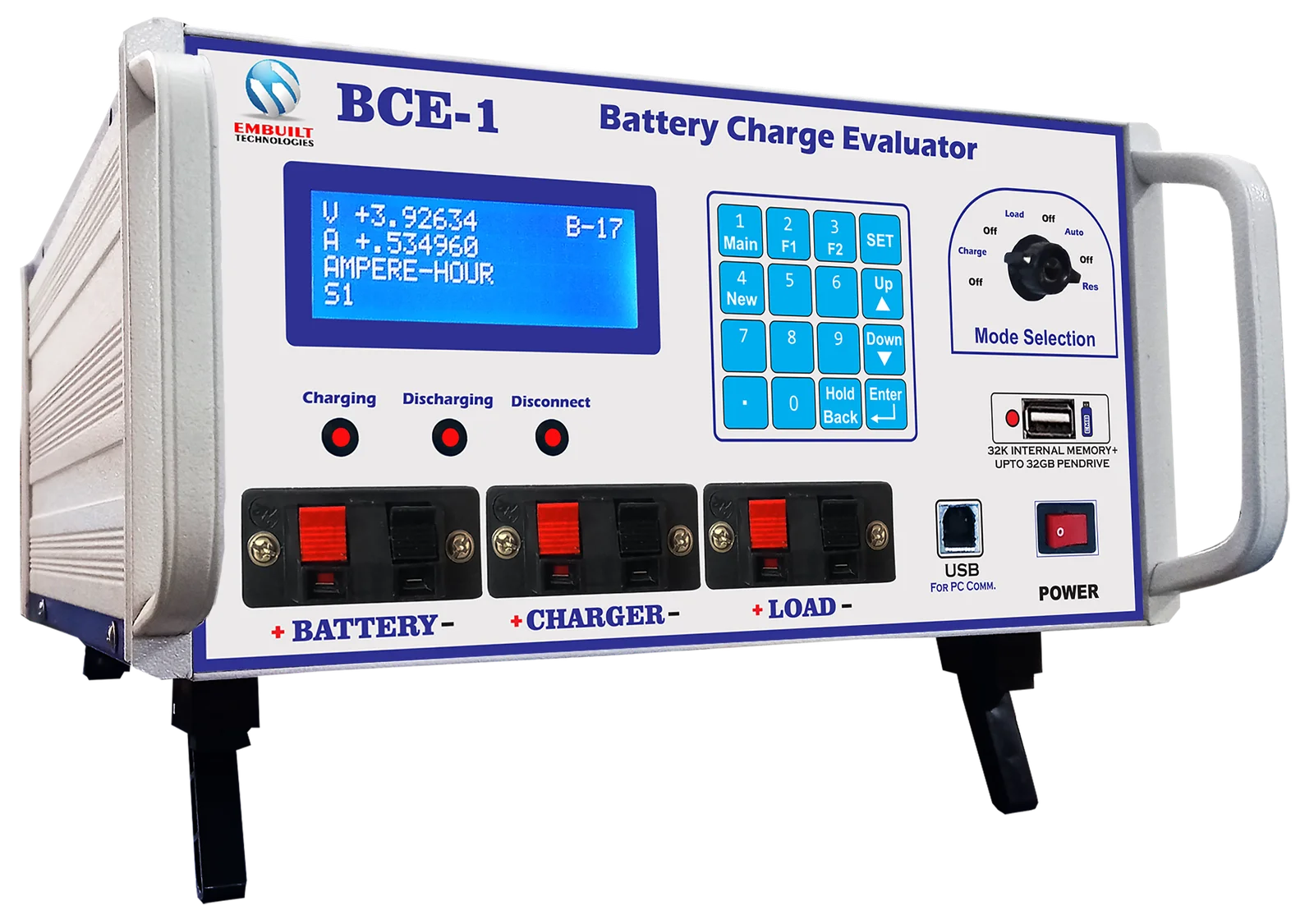

BCE-1 (Battery Charge Evaluator)

Operating Modes

BCE-1 has a rotary selector switch to select:

Auto Mode Operation

In auto mode, BCE-1 charging the battery and after a full charge it automatically switched in discharging. This process mainly used for life testing of the battery and R&D analysis. In software, it shows charging and discharging graphs of all cycles provide useful information for the research field.

Data Measurement and Recording

BCE-1 measures and records all charging and discharging data with real date-time clock in internal memory and on the basis of its analysis, it shows battery milliamp-hour.

Battery Protection Features

BCE-1 has the facility to protect battery on overvoltage and overcurrent. The user has a facility to set voltage and current range in this meter.

Software Integration

BCE-1 also connect with software and share it's measured data. The software has the facility to create a waveform of charging, discharging and mAh.

BCE-1 Description

The BCE-1 Battery Charge Evaluator is a comprehensive battery testing solution designed for precise measurement of charging and discharging parameters. With its versatile operating modes and advanced data recording capabilities, it provides valuable insights for battery performance evaluation, quality control, and research applications.

Key Features

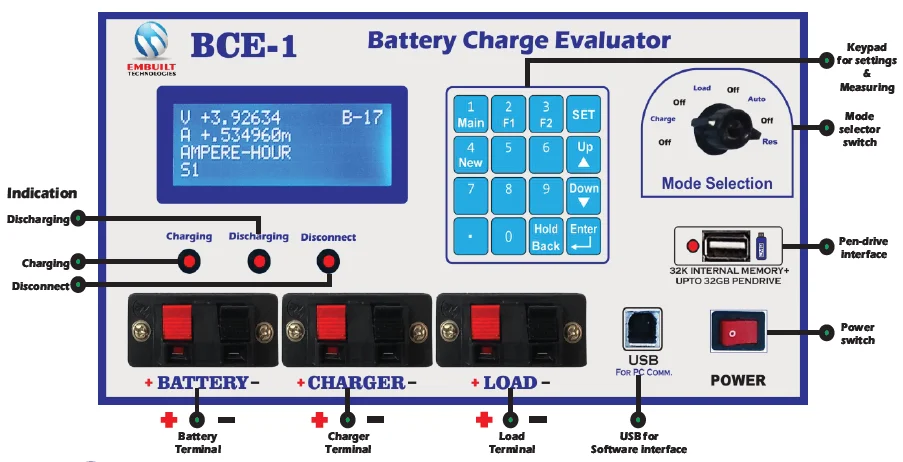

• Charging and discharging terminal connections
• Three operating modes: Charging, Discharging, and Auto
• Real-time measurement of voltage, current, and mAh
• Internal memory with real date-time clock
• Battery protection against overvoltage and overcurrent
• Configurable voltage and current ranges
• Software connectivity for data analysis
• Graphical representation of charging/discharging cycles

Applications

• Battery quality testing and sorting
• Battery life cycle analysis
• Research and development
• Production line testing
• Battery performance evaluation
• R&D analysis for battery optimization
