Source Load Connection

Understanding Source Load Connection

The source load connection is easy to do. On one side power source is connected and another side load is connected.

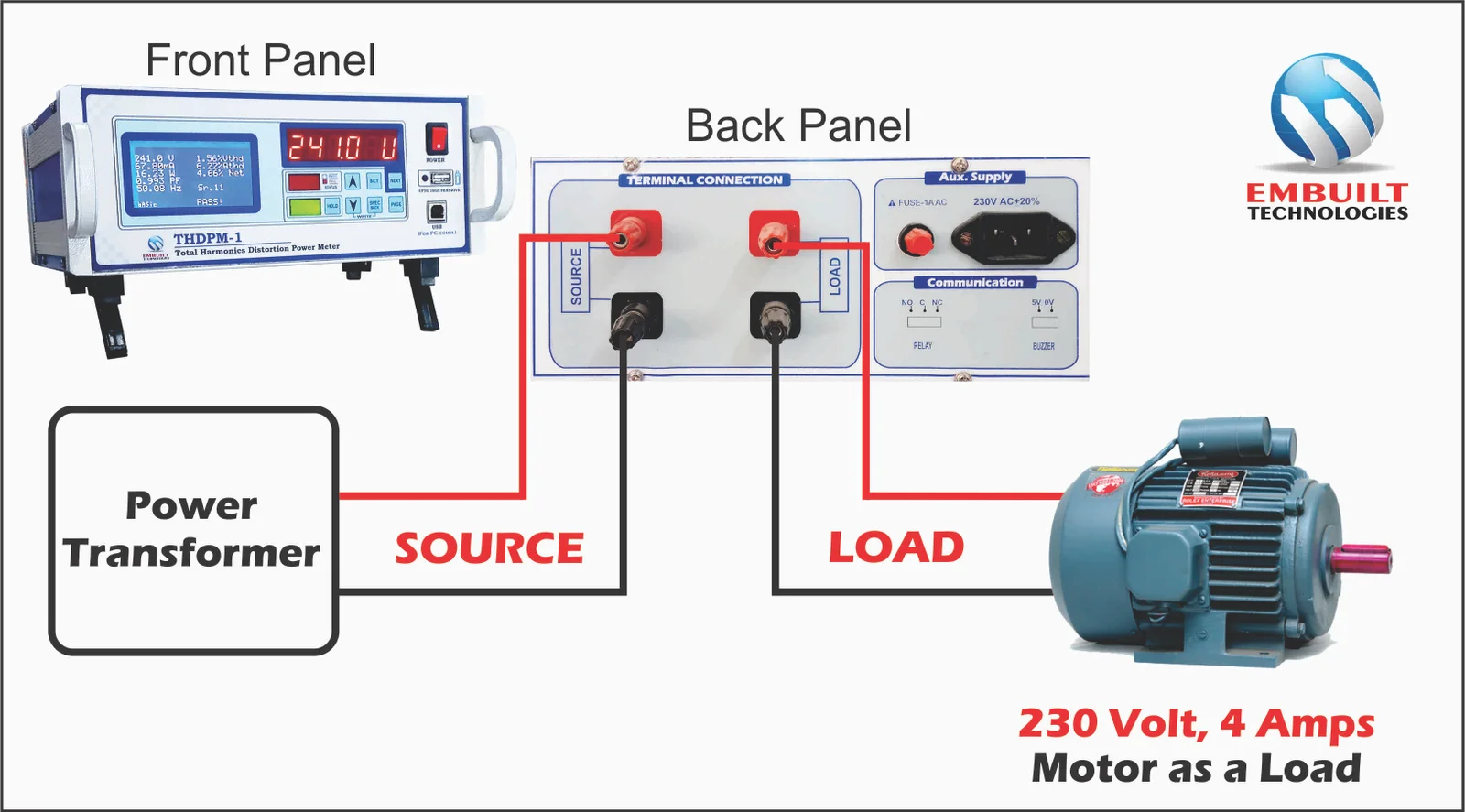

Source Load Connection Diagram

Source load connection diagram

The right image shows voltage and current measurement in source load connection.

All the measurement is done internally so no need for extra probe or wire required for measurement.

Key Characteristics of Source Load Connection

Simple connection method with power source on one side and load on the other
Internal measurement circuitry eliminates need for external probes
Commonly used for power measurements in testing equipment
Provides simultaneous voltage and current monitoring

Advantages of Source Load Connection

Simplicity

Easy to set up with minimal wiring requirements

Convenience

No additional probes or wires needed for measurements

Implementation Guidelines

Connect the power source to the input terminals of the measuring device
Connect the load to the output terminals of the measuring device
Ensure proper voltage and current ratings for both source and load
Verify all connections before applying power
Monitor measurements through the device's display or interface

View Full Source Load Connection Guide
